Sony CCXC-12P02N Analog Video Cable Assemblies 2 meters for Industrial Cameras with HR10A-10R-12SB and HR10A-10R-12PB Interface

Product Details:

Place of Origin:China
Brand Name:DHT
Certification:CE/ROHS/FCC/SGS/UL
Model Number:CCXC-02SR

Payment & Shipping Terms:

Minimum Order Quantity:100pcs
Price:negotiation
Packaging Details:1 piece  per PE Bag then 20pcs per carton
Delivery Time:3 - 7 working days
Payment Terms:T/T or Paypal
Supply Ability:300,000pcs per month


Detailed Product Description

Product Name:Camera Link CableApplication:CCD Camera
Cable Length:2.0 MetersInterface:HR10A-10R-12R
Connector:HR10A-10P-12SFeature:High Flex,Chain Flex
Standard:CE/ROHS/FCC/SGSType:PVC Molded


Sony CCXC-12P02N  Analog  Video  Cable Assemblies 2 meters for Industrial Cameras with  HR10A-10R-12SB and HR10A-10R-12PB Interface


Description


The CCXC-12P02N is a 2 meter 12-pin interconnect cable, compatible the Hitachi C201-KSM and Intercon VCP-02-S cables.This is robust cable can be used in Chain equipment.

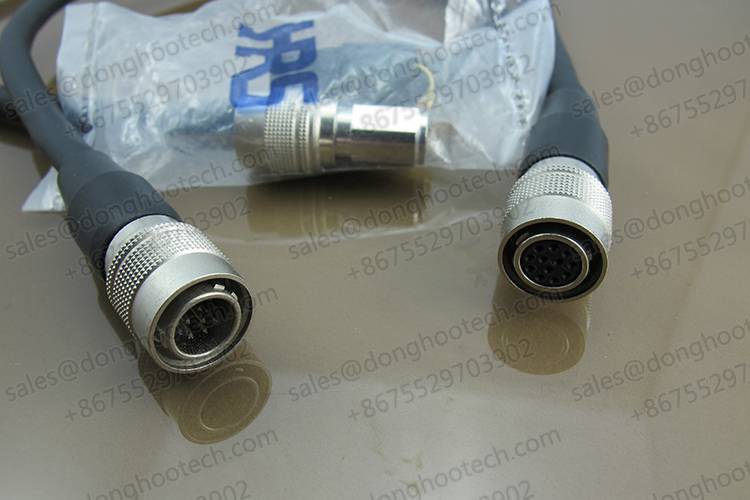

The 12-pin Male/Female Camera Interconnect Cable with molded HR10A-10P-12S and HR10A-10P-12P(73) connector is manufactured by DHT and is 100% compatible with 12-pin camera for Hitachi, Sony, Uniq, and Pulnix cameras ect with HRS connector HR10A-10R-12SB and HR10A-10R-12PB Interface .

Hitachi Part No. C 102 KS
Sony Part No. CCXC-12P02N


Features

100% compatible with 12-pin camera
Interconnect cables
Shielded
12pin Male/Female
For industrial application only.
OEM service is available


Standard Pin To Pin

  1. GND

  2. +12 VDC

  3. VIDEO GND

  4. VIDEO OUTPUT

  5. GND

  6. HD SYNC INPUT

  7. VD SYNC INPUT OR TRIGGER

  8. GND

  9. AUX SIGNAL

  10. AUX SIGNAL

  11. TRIGGER INPUT

  12. GND

Specifications:


Physical

Cable Color

Black

Connector

HR10A-10P-12S

Jacket Material

PVC

Shell Material

Polyester Elastomer

Shell Color

Black

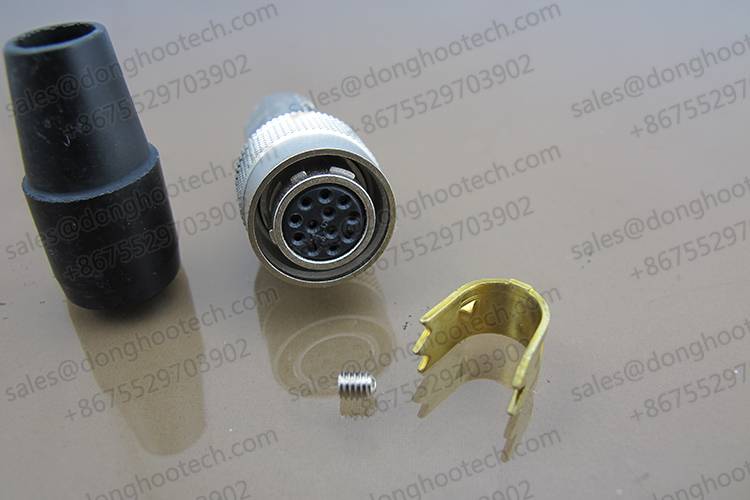

Shell Construction

Pre mold in Poly Ethelene wrapped 360

degrees with copper tape terminated to shield,

overmolded in black PVC.

Cable construction

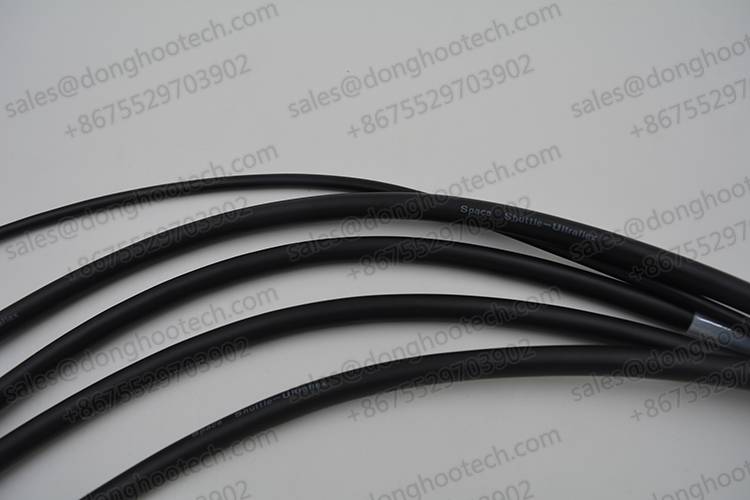

24AWG*12C+DRAIN+AL/MAYLOR OD6.5MM BLACK PVC JACKET UL2464

Electrical



Voltage Rating

DC 300V 0.08sec

Current Rating

1A

Insulation Resistance

20 Mohm MIN

Dielectric Test

3ohm Max

Temperature Rating

- 20 to +75 Celsius degree


Applications:


Indutrial Camera

DALSA,BASLER,SONY,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX,

DTA,PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO,

SENTECH,EPIX……

Imaging frame grabber

SONY,CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT……

Machine vision

For all Camera Link standard interface

Equipment Systems

Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment……
